01 - Objective

In this tutorial, we will teach you about modelling processes in VHDL, this will be explained using D-Flip-Flops.

02 - Logic Gates Implementation

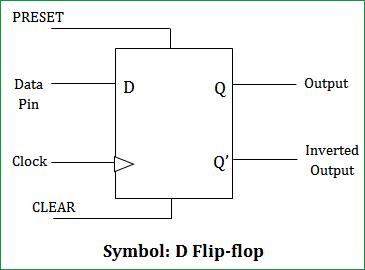

D-FlipFlop Symbol:

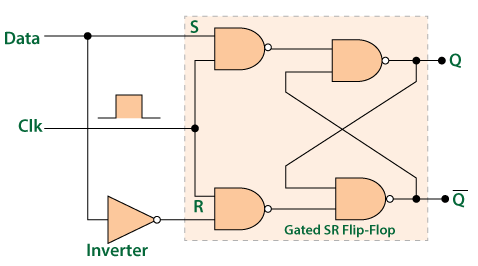

Circuit Diagram:

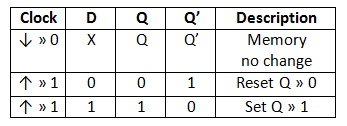

Truth Table:

VHDL code:

-- D flip-flop with asynchronous reset implementation
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

entity d_flipflop is
  Port ( D : in  STD_LOGIC;
         clk : in  STD_LOGIC;
         reset : in  STD_LOGIC;
         Q : out  STD_LOGIC;
         Q_bar : out  STD_LOGIC);
end d_flipflop;

architecture Behavioral of d_flipflop is
begin
  process (reset, clk)
    begin
      if reset = '1' then
        Q <= '0';
        Q_bar <= '1';
      elsif rising_edge(clk) then
        Q <= D;
        Q_bar <= not D;
      end if;
  end process;
end Behavioral;

Sample Testbench

-- D flip-flop testbench definition
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

entity d_flipflop_tb is
end d_flipflop_tb;

architecture Behavioral of d_flipflop_tb is
  component d_flipflop is
    Port ( D : in  STD_LOGIC;
           clk : in  STD_LOGIC;
           reset : in  STD_LOGIC;
           Q : out  STD_LOGIC;
           Q_bar : out  STD_LOGIC);
  end component;

  signal D, clk, reset, Q, Q_bar : std_logic;
begin
  -- Instantiate the D flip-flop
  dut: d_flipflop Port map (D => D, clk => clk, reset => reset, Q => Q, Q_bar => Q_bar);

  -- Clock generation process
  clk_proc: process
  begin
    clk <= '0';
    wait for 5 ns;
    while true loop
      clk <= not clk;
      wait for 5 ns;
    end loop;
  end process;

  -- Stimulus process to test the flip-flop
  stim_proc: process
  begin
    -- Reset the flip-flop
    reset <= '1';
    D <= '0';
    wait for 10 ns;
    reset <= '0';
    wait for 10 ns;

    -- Set D = 1
    D <= '1';
    wait for 10 ns;
    assert (Q = '1' and Q_bar = '0')
      report "Error: Q should be 1 and Q_bar should be 0" severity error;

    -- Set D = 0
    D <= '0';
    wait for 10 ns;
    assert (Q = '0' and Q_bar = '1')
      report "Error: Q should be 0 and Q_bar should be 1" severity error;

    -- Set D = 1 again
    D <= '1';
    wait for 10 ns;
    assert (Q = '1' and Q_bar = '0')
      report "Error: Q should be 1 and Q_bar should be 0" severity error;

    -- Reset the flip-flop again
    reset <= '1';
    wait for 10 ns;
    reset <= '0';
    wait for 10 ns;

    -- Set D = 0
    D <= '0';
    wait for 10 ns;
    assert (Q = '0' and Q_bar = '1')
      report "Error: Q should be 0 and Q_bar should be 1" severity error;

    -- Set D = 1 again
    D <= '1';
    wait for 10 ns;
    assert (Q = '1' and Q_bar = '0')
      report "Error: Q should be 1 and Q_bar should be 0" severity error;

    -- Wait for a few more clock cycles
    wait for 20 ns;

    -- Set D = 0 again
    D <= '0';
    wait for 10 ns;
    assert (Q = '0' and Q_bar = '1')
      report "Error: Q should be 1 and Q_bar should be 0" severity error;

    -- Finish the simulation
    wait;
  end process;
end Behavioral;

03 - Simulation Process

04 - Flashing Process

Please follow the same steps found in lab-03 in order to synthesise and flash the FPGA.

05 - Tasks

1. Implement JK-FlipFlop

2. Implement T-FlipFlop
