Discussion III: Signal vs. Variable

• Signals are used to connect the design components and must carry the information between current statements of the design.

• Variables are used within process to compute certain values.

The following example shows their difference:

• -------------------------------------------------------

• - Signal vs. Variable (sig_var.vhd)

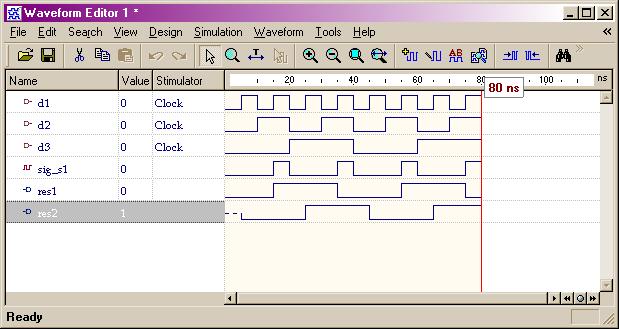

• - Look at the outputs in simulation waveform

• - for same computation, we get two different results

• -

• - by Weijun Zhang, 05/2001

• -------------------------------------------------------

--------------------------------------------------------
-- Signal vs. Variable (sig_var.vhd)
-- Look at the outputs in simulation waveform
-- for same computation, we get two different results
--
-- by Weijun Zhang, 05/2001
--------------------------------------------------------
library ieee;
use ieee.std_logic_1164.all;

entity sig_var is
port(	d1, d2, d3:	in std_logic;
	res1, res2:	out std_logic);
end sig_var;

architecture behv of sig_var is

  signal sig_s1: std_logic;

begin
  proc1: process(d1,d2,d3)
    variable var_s1: std_logic;
  begin
		var_s1 := d1 and d2;
		res1 <= var_s1 xor d3;
  end process;

  proc2: process(d1,d2,d3)
  begin
		sig_s1 <= d1 and d2;
		res2 <= sig_s1 xor d3;
  end process;
end behv;
